Description
Heat pump water heater works on principle just like an air conditioner or like the refrigerator. It absorbs warmth from the air and transfer it to heat water. Hence it’s also referred to as air-source heat pumps.It operates on electricity but is more efficient than a conventional electric water heater.
GOMON high-efficiency all in one heat pump water heaters can provide an energy efficient and innovative water heating solution for your house.
Characteristic
1、The enamel is coated inside the water tank Which is of high corrosion resistance and of Great pressure bearing.
2、Our Porcelain enamel tanks approved by CE 、 WATER MARK、ETL、WRAS、EN12977-3/
3、High efficient Micro-Channel heat exchanger with larger heat exchange area, Better heat transfer effect and More durable performance.
4、Not touch with water in the water tank, so the heat exchanger has no risk of corrosion, scaling, leakage, etc.
5、High Efficient Compressor
Being internationally-renowned brand dedicated compressor for heat pump, it is more reliable in system matching and quieter in operation.
6、Intelligent Defrosting
With intelligent defrosting design, it can revolutionarily solve the bottlenecks of heat exchangers in cold winter such as frosting and slow heating, etc., allowing you to spend a more comfortable winter.
Parameter
Model | KRS38A-160V | KRS38A-200V |
Tank Capacity | 160L | 200L |
Inner Tank Material | Enamelled Steel (Steel BTC340R, 2.5mm thickness) | Enamelled Steel (Steel BTC340R, 2.5mm thickness) |
Outer casing | Painted galvanized steel | Painted galvanized steel |
Tank Rated Working | 0.8MPa | 0.8MPa |
Waterproof grade | IPX4 | IPX4 |
Condenser | Micro-Channel Heat Exchanger | Micro-Channel Heat Exchanger |
Electric Element Power | 2500W | 2500W |
Heat Pump Rated Input | 420W | 420W |
Heat Pump Output | 1780W | 1780W |
Max. Input Power | 3200W | 3200W |
Heating Capacity | 38L/H | 38L/H |
Max. Water Temperature | 75℃ | 75℃ |
Voltage | ~220-240V / 50Hz | ~220-240V / 50Hz |
Refrigerant | R134a | R134a |
Cop | 4.25 | 4.25 |
Inlet / Outlet size | ¾” | ¾” |
Control Method | Touch screen | Touch screen |
Noise Level | 40dB(A) | 40dB(A) |
Dimensions | Ø525×1735mm | Ø525×1955mm |

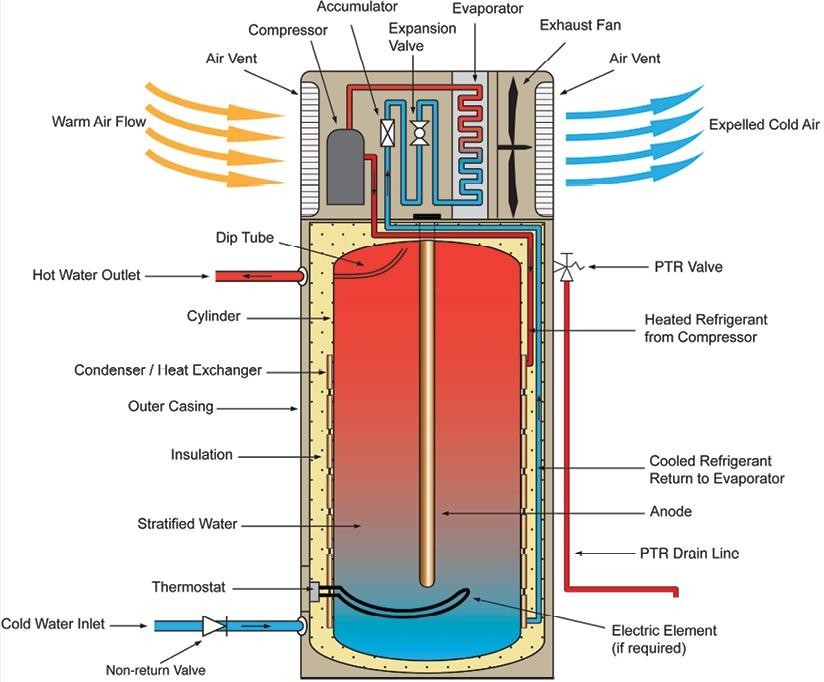

Principle
All in one heat pump water heaters are solutions where the domestic hot water is heated by an integrated heat pump
(1) The fan inhales ambient air transferring its energy to the refrigerant agent in the evaporator thus changing from liquid to gas.
(2) The gas is further heated by compression.
(3) In the condenser the gas transfers its accumulated heat to the water tank. As it gets colder it transforms back to fluid. The pressure of the fluid is further reduced by the expansion valve.
(4) The electric back-up heating starts only when required during insufficient heat pump working conditions.
