Description
Split pressurized solar water heater incorporates a number of flat plate collectors, pressurized water tank, pump station and accessories. The solar collector may be installed either on house roof or balcony while water tank may be placed anywhere inside house.
The characteristics
1. The solar collector and water tank can be placed separately, easy to install, easy for building integration.
2. The water tank is indirect tank with copper coil exchangers,completely solve the problem of collector in freezing and harsh
3. Copper coil exchangers can realize the cycle of solar energy and the cycle of electric heater or gas for supplementary energy
4. Reliable electric back-up with protection against dry heating and thermal cut-out.
5. With high quality flat solar collector and stainless steel water tank for long service life.
6. Totally copper flow channels achieve low defect rate and easy maintenance,long service life.
Parameter
Type | Tank Specification | Outer Tank Diameter | Inner Tank Diameter | Inner Tank Material | Heat Exchanger Area |
TX-SFP-100L One Coil | 100L | Φ520×(835+25) | Φ435 | SUS316L×δ1.2 | 0.4㎡ |
TX-SFP-100L One Coil | 150L | Φ520×(1170+25) | Φ435 | SUS316L×δ1.2 | 0.55㎡ |
TX-SFP-200L One Coil | 200L | Φ520×(1460+25) | Φ435 | SUS316L×δ1.2 | 0.75㎡ |
TX-SFP-250L One Coil | 250L | Φ520×(1760+25) | Φ435 | SUS316L×δ1.2 | 0.925㎡ |
TX-SFP-300L One Coil | 300L | Φ520×(1729+25) | Φ480 | SUS316L×δ1.2 | 1.1㎡ |
TX-SFP-400L One Coil | 400L | Φ520×(1511+25) | Φ600 | SUS316L×δ1.5 | 1.175㎡ |
TX-SFP-500L One Coil | 500L | Φ520×(1846+25) | Φ600 | SUS316L×δ1.5 | 1.475㎡ |
TX-SFP-150L Two Coil | 150L | Φ520×(1170+25) | Φ435 | SUS316L×δ1.2 | 0.35㎡/0.5㎡ |
TX-SFP-200L Two Coil | 200L | Φ520×(1460+25) | Φ435 | SUS316L×δ1.2 | 0.4㎡/0.7㎡ |
TX-SFP-250L Two Coil | 250L | Φ520×(1760+25) | Φ435 | SUS316L×δ1.2 | 0.55㎡/0.875㎡ |
TX-SFP-300L Two Coil | 300L | Φ520×(1729+25) | Φ480 | SUS316L×δ1.5 | 0.6㎡/0.95㎡ |
TX-SFP-400L Two Coil | 400L | Φ520×(1511+25) | Φ600 | SUS316L×δ1.5 | 0.575㎡/1.15㎡ |
TX-SFP-500L Two Coil | 500L | Φ520×(1846+25) | Φ600 | SUS316L×δ1.5 | 0.8㎡/1.425㎡ |
Principle

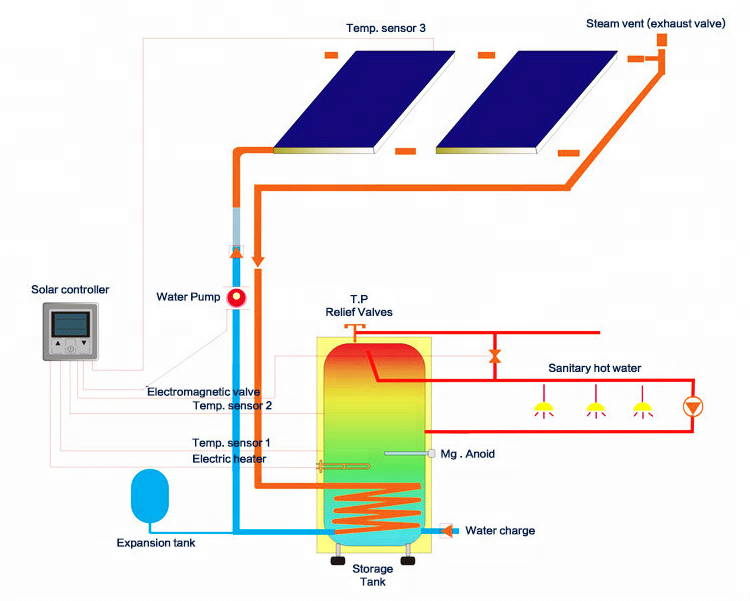

There have three parts of the split pressurized solar water heater system: one is pipe solar collector, the second is the water tank and there is one or two cooper coil inside the water tank (optional), the third is the working station which include the expansion tank, circulation pump, probe (pressure, temperature), check valve, the temperature sensor and flowmeter and the digital display.
The pipe solar collector absorbs solar energy and transmits it to the water tank through circulation, When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically. The circulation pump makes heat-conductiong liquid circulate automatically. Then the heat-conducting liquid transfers heat to water by heat exchanger in the tank to heat the water.
Description
Split pressurized solar water heater incorporates a number of flat plate collectors, pressurized water tank, pump station and accessories. The solar collector may be installed either on house roof or balcony while water tank may be placed anywhere inside house.
The characteristics
1. The solar collector and water tank can be placed separately, easy to install, easy for building integration.
2. The water tank is indirect tank with copper coil exchangers,completely solve the problem of collector in freezing and harsh
3. Copper coil exchangers can realize the cycle of solar energy and the cycle of electric heater or gas for supplementary energy
4. Reliable electric back-up with protection against dry heating and thermal cut-out.
5. With high quality flat solar collector and stainless steel water tank for long service life.
6. Totally copper flow channels achieve low defect rate and easy maintenance,long service life.
Parameter
Type | Tank Specification | Outer Tank Diameter | Inner Tank Diameter | Inner Tank Material | Heat Exchanger Area |
TX-SFP-100L One Coil | 100L | Φ520×(835+25) | Φ435 | SUS316L×δ1.2 | 0.4㎡ |
TX-SFP-100L One Coil | 150L | Φ520×(1170+25) | Φ435 | SUS316L×δ1.2 | 0.55㎡ |
TX-SFP-200L One Coil | 200L | Φ520×(1460+25) | Φ435 | SUS316L×δ1.2 | 0.75㎡ |
TX-SFP-250L One Coil | 250L | Φ520×(1760+25) | Φ435 | SUS316L×δ1.2 | 0.925㎡ |
TX-SFP-300L One Coil | 300L | Φ520×(1729+25) | Φ480 | SUS316L×δ1.2 | 1.1㎡ |
TX-SFP-400L One Coil | 400L | Φ520×(1511+25) | Φ600 | SUS316L×δ1.5 | 1.175㎡ |
TX-SFP-500L One Coil | 500L | Φ520×(1846+25) | Φ600 | SUS316L×δ1.5 | 1.475㎡ |
TX-SFP-150L Two Coil | 150L | Φ520×(1170+25) | Φ435 | SUS316L×δ1.2 | 0.35㎡/0.5㎡ |
TX-SFP-200L Two Coil | 200L | Φ520×(1460+25) | Φ435 | SUS316L×δ1.2 | 0.4㎡/0.7㎡ |
TX-SFP-250L Two Coil | 250L | Φ520×(1760+25) | Φ435 | SUS316L×δ1.2 | 0.55㎡/0.875㎡ |
TX-SFP-300L Two Coil | 300L | Φ520×(1729+25) | Φ480 | SUS316L×δ1.5 | 0.6㎡/0.95㎡ |
TX-SFP-400L Two Coil | 400L | Φ520×(1511+25) | Φ600 | SUS316L×δ1.5 | 0.575㎡/1.15㎡ |
TX-SFP-500L Two Coil | 500L | Φ520×(1846+25) | Φ600 | SUS316L×δ1.5 | 0.8㎡/1.425㎡ |
Principle
There have three parts of the split pressurized solar water heater system: one is pipe solar collector, the second is the water tank and there is one or two cooper coil inside the water tank (optional), the third is the working station which include the expansion tank, circulation pump, probe (pressure, temperature), check valve, the temperature sensor and flowmeter and the digital display.
The pipe solar collector absorbs solar energy and transmits it to the water tank through circulation, When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically. The circulation pump makes heat-conductiong liquid circulate automatically. Then the heat-conducting liquid transfers heat to water by heat exchanger in the tank to heat the water.
